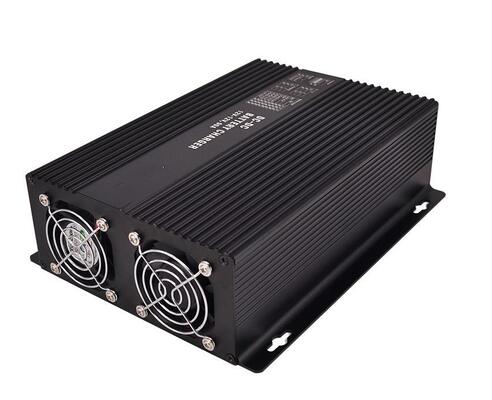

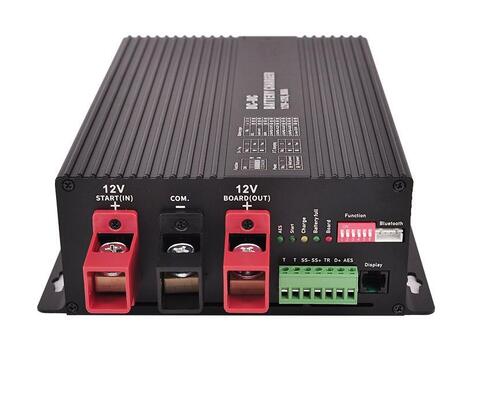

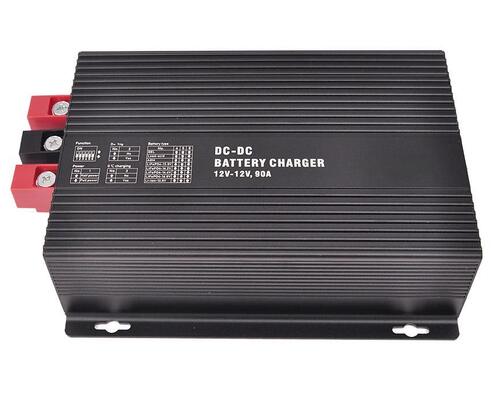

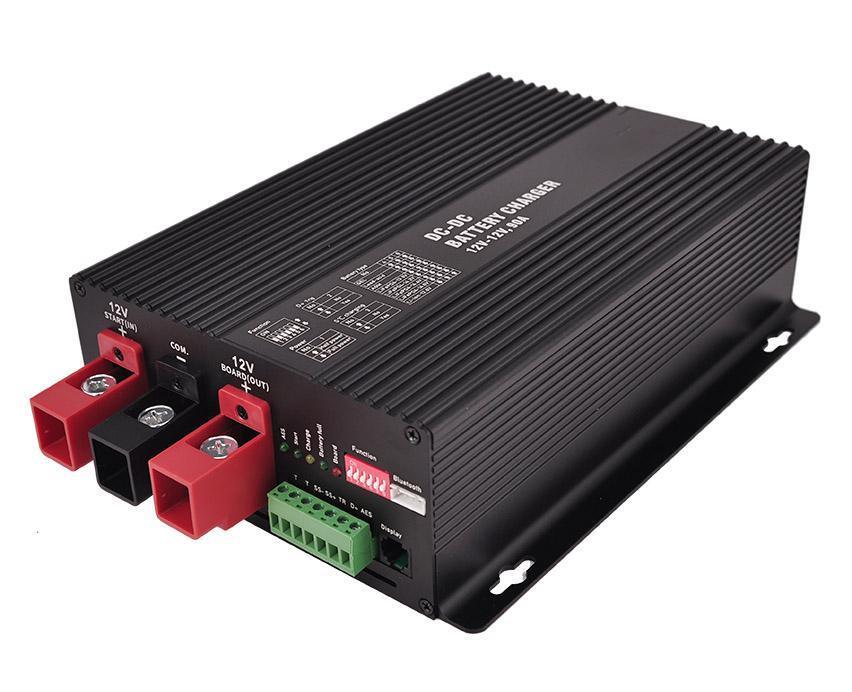

12V DC-DC LiFePO4 Lithium-ion Battery RV Charging Controller
Productdetails:
| Plaats van herkomst: | Shenzhen |
| Merknaam: | Oxiang /OEM |
| Certificering: | CE.RoHS,FCC |
| Modelnummer: | B2B1290 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 st |
|---|---|
| Prijs: | Negotiate |
| Verpakking Details: | Geschenkdoos |
| Levertijd: | Voorbeeld: Ongeveer 3-5 werkdagen na betaling |
| Betalingscondities: | T/T, Western Union, Paypal, Creditcard |
| Levering vermogen: | 10000 stks/maand |
|
Gedetailleerde informatie |
|||
| Compatibiliteit met batterijtype: | Loodzuur, AGM, Gel, Lithium | type: | MPPT |
|---|---|---|---|
| Uitgangsspanning: | Gelijkstroom 12V / 24V | Uitgangsvermogen: | 500W |
| Bedrijfstemperatuur: | -10°C tot 50°C | Spanning: | 12-50v |
| Pvmax: | 685w | De maximum macht van gelijkstroom: | 390W |
| Functie: | APP-controle | Koelkast: | 20A |
| Oplader: | zonnebatterijlader | Socket standaard: | EU/AU/UK/VS |
| Bedrijfstemperatuur: | -20-50 ℃ | Certificeringen: | CE, RoHS |
| Volt: | 12V | ||
| Markeren: | 12V LiFePO4 battery charger,RV DC-DC charging controller,lithium-ion battery charging controller |
||
Productomschrijving
INSTALLATION ATTENTION
• Do not expose the DC/DC charge tr o rain or snow.
• Do not use the DC/DC charger if it has received a sharp blow, been dropped,
has cracks or openings in the case, or is damaged in any other way.
• Do not install the charger near a heat source.
• This charger should not be installed in an airtight or poorly ventilated area.
• Do not attempt to open the DC/DC charger. There are no user serviceable parts
except for user replaceable fuses.
• Do not use the DC/DC charger with damaged cables.
• It is strictly forbidden to disassemble the charger and/or modify the housing in
any way.
CONNECTIONS ATTENTION
• It is important to choose the correct battery type, a wrong choice can cause irreversible
damage, The LITHIUM charging cycle is only compatible with LiFePo4 batteries with
integrated BMS (Battery Management System).
Maintenance
• If necessary, the fuses must be replaced by identical products.
• This charger cannot be disassembled and the electronic board is inaccessible.
• Therefore, with the exception of the fuses, all on-site maintenance is prohibited.
• Disconnect the DC power supply before servicing, cleaning or working on
circuits connected to the DC/DC booster.
• Once disconnected, isolate the battery connection terminals.
• It is important to ensure that the area around the battery is well ventilated.
• It is important to ensure that the battery voltage matches the output voltage
• Always use ungrounded batteries. If necessary, the battery grounding connection
should be made last.
To prevent overheating, make sure the connections are properly tightened
